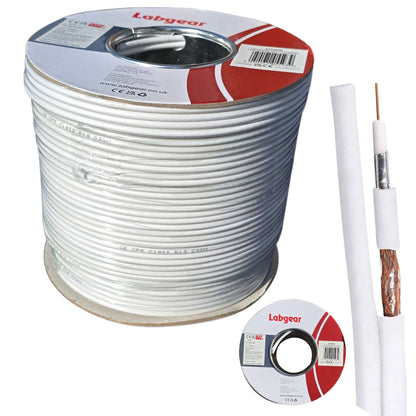

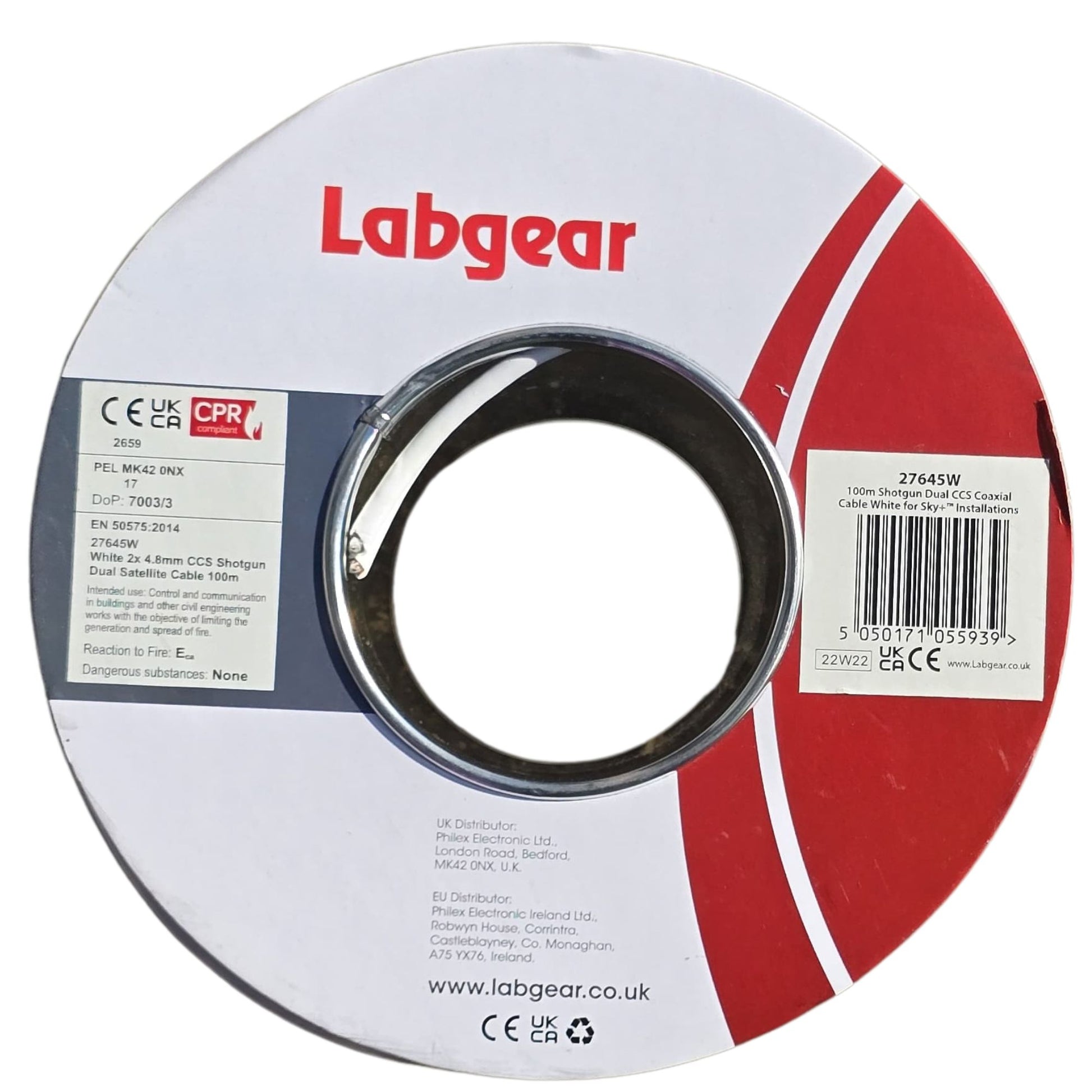

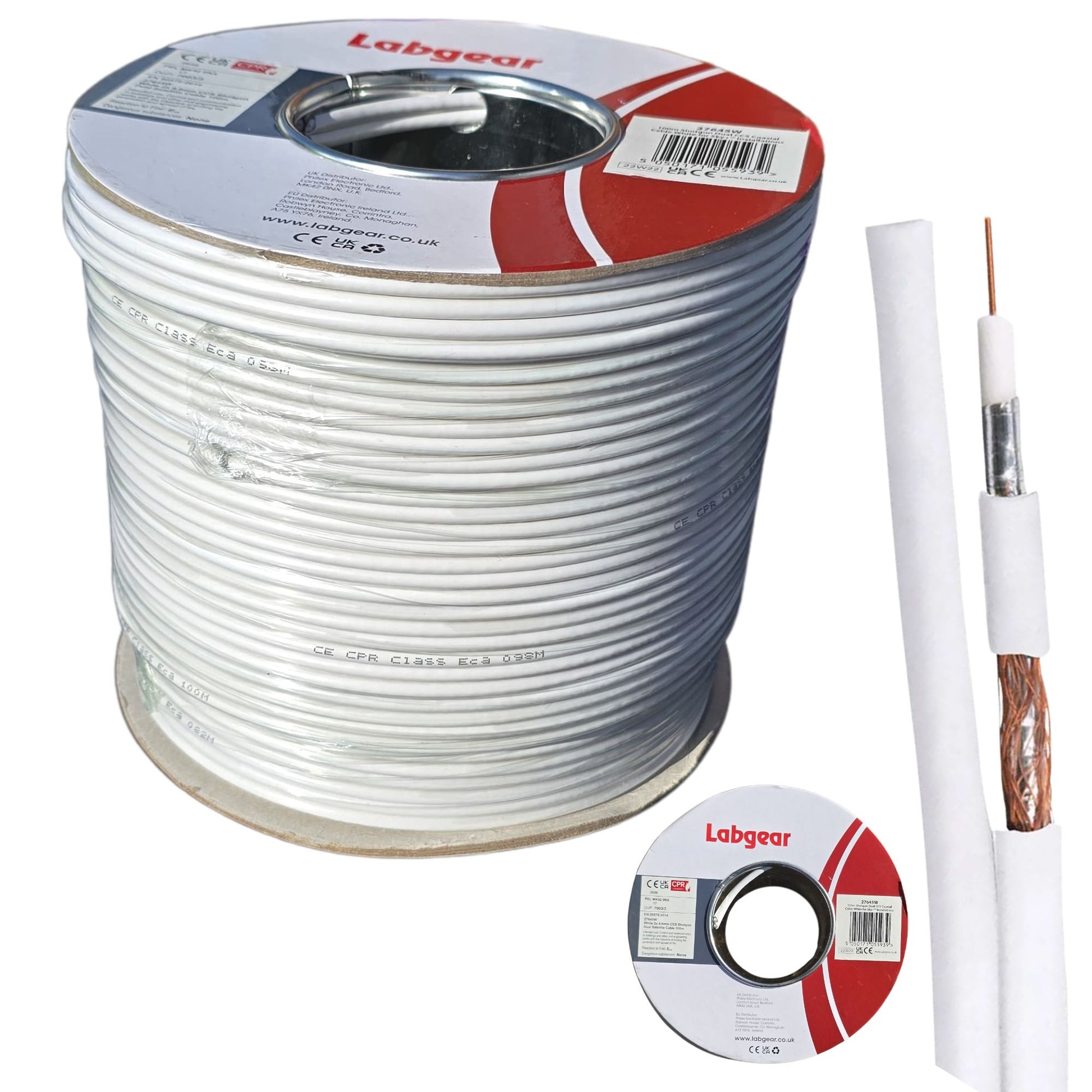

Twin Coaxial Satellite Cable – White 100m Reel

This **high-performance Twin Coaxial Shotgun Cable** is designed for **satellite installations**, ensuring **exceptional signal integrity** with its robust construction and shielding. **Ideal for Freesat installations and set-top boxes requiring a dual feed**, this 100m white drum provides a **clean and discreet installation**, perfect for both residential and commercial setups.

Key Features

• Perfect for Freesat & Set-Top Boxes: Supports **dual-feed connections** for Freesat and other satellite TV systems.
• 75 Ohm Low-Loss Cable: Ensures superior signal transmission with a **0.65mm CCS conductor**.

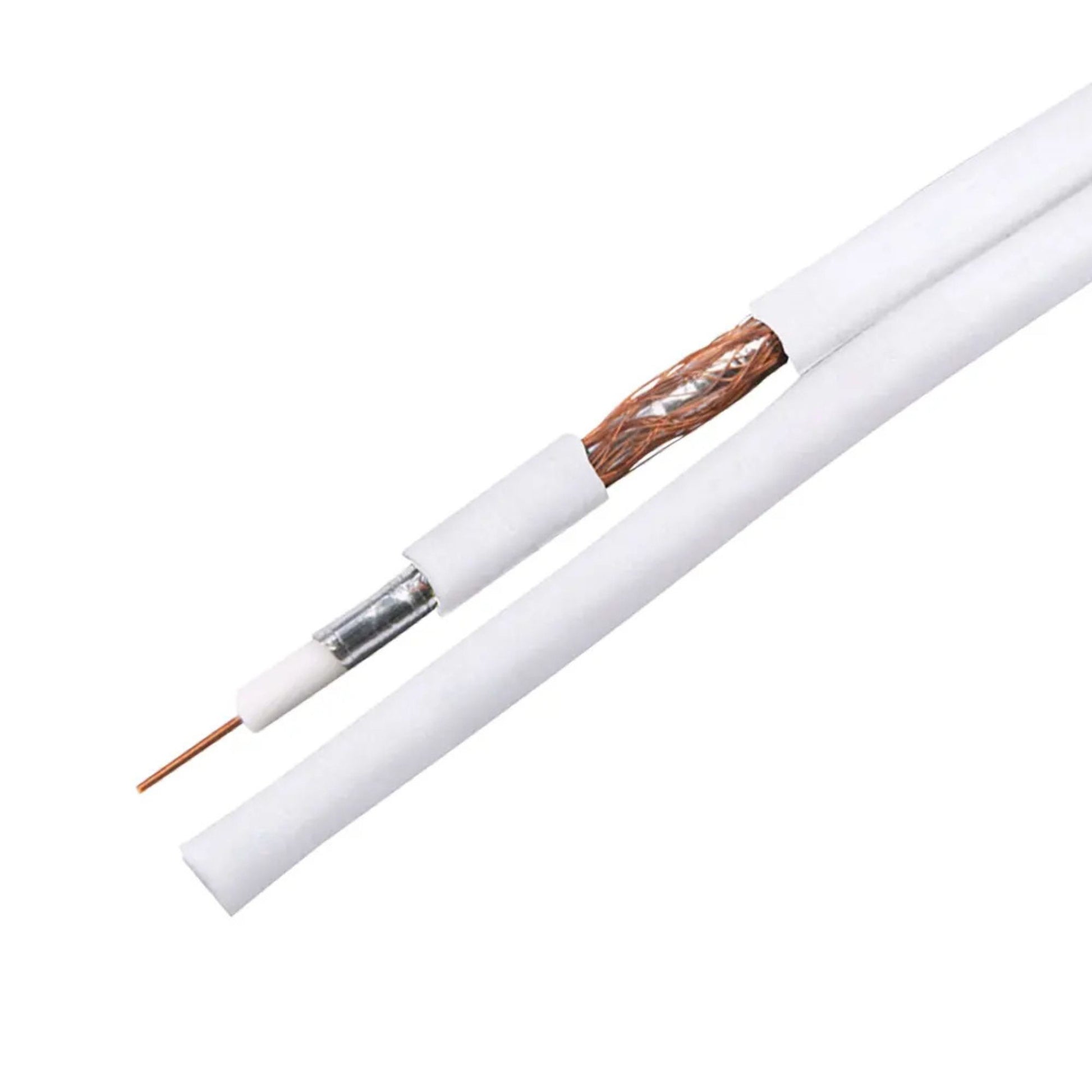

• Optimal Shielding: Features **Foam PE 2.9mm insulation** and **48 x 0.12mm CCA braiding**.
• Comprehensive Signal Protection: **Aluminium/PET/AI foil screening** provides **100% coverage**.
• Durable Outer Sheath: **Class Eca PVC** with a **4.7 x 9.4mm** outer layer for added protection.
• 100m Drum Length: Ideal for **extensive satellite installations** with metre marking for **precision and ease**.

Technical Specifications

• Cable Type: Shotgun
• Conductor Type: Copper Clad Steel
• Conductor Diameter: 0.65mm ±0.02mm
• Dielectric: Foam PE 2.9mm ±0.1mm
• Foil Screening: Aluminium/PET/Al Foil, 100% Coverage
• Braid Screening: CCA Wire Braid, 45% Coverage
• Braid Screening Diameter: 48 x 0.12mm
• Outer Sheath: PVC, 4.7 x 9.4mm ±0.4mm
• Capacitance: 54 ±2pF/m
• Impedance: 75Ω
• Standard: EN50575:2014

Signal Performance

• Return Loss:
  • 5-470MHz: >23dB
  • 470-862MHz: >20dB
  • 862-2150MHz: >15dB
• Maximum Signal Attenuation:
  • 50MHz: 8.2dB/100m
  • 100MHz: 10.6dB/100m
  • 200MHz: 14.3dB/100m
  • 460MHz: 21.8dB/100m
  • 860MHz: 30.5dB/100m
